Computing at the aggregate level

Danilo Pianini, Mirko Viroli, Roberto Casadei

"Situatedness"
Unpredictability (humans)
High density
Heterogeneity
Mobility
Openness
Safety concerns

Engineering this thing I

Throw everything at the cloud, and let it process it

...somehow

Lots of information is only locally relevant
Misuse of bandwidth and computational power
Does not play well with high densities
Privacy concerns

Engineering this thing II

Rely on opportunistic communication

write software with nature inspiration

Communication issues
Lack of composability
Local-to-global (kinda bottom-up)
Side effects on multiple scales

Local-to-global

something as small as the flutter of a butterfly’s wing can ultimately cause a typhoon halfway around the world

Controlling emergency is hard
Engineers don’t like lack of control

The good part

Basically the foundation of

Stigmergy
Nature inspired coordination

simple behavioural and communicational rules, global effects

Side effects on multiple scales

simple local behaviours

↓↓↓

complex global behaviour

effects reified on different scales

The bad part

emergent behaviour is difficult to forecast

simple behavioural and communicational rules, global effects

↓↓↓

small mistakes, global consequences

The bad part

hard to engineer properly
no composability
poor reusability

nature can bet on numbers, we can't.

Aggregate programming: idea

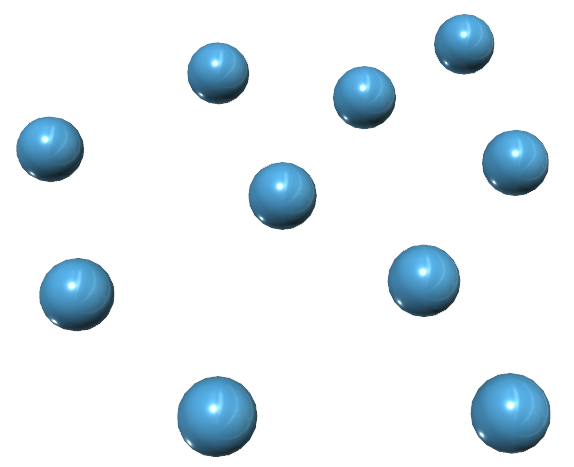

devices

Aggregate programming: idea

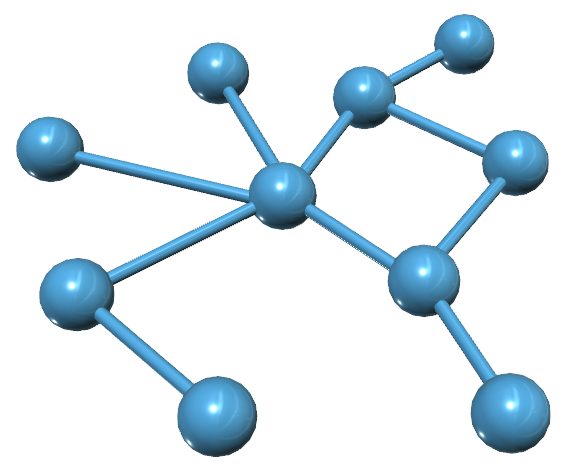

logical network

Aggregate programming: idea

each device holds some values

Aggregate programming: idea

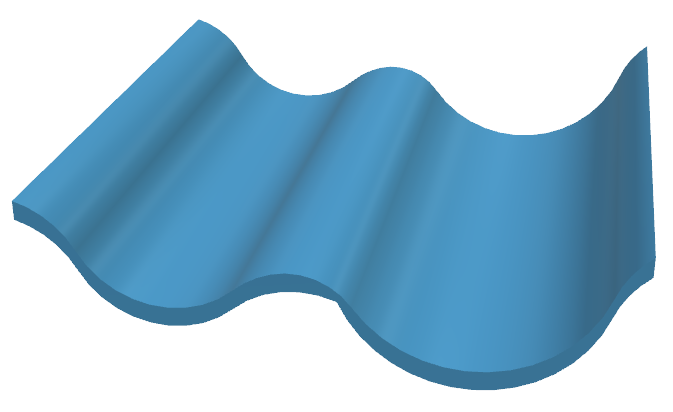

interpret such values as a field in space-time

Aggregate programming: idea

(computational field)

Aggregate programming: idea

↑↑↑ Compute on these things ↑↑↑

Aggregate programming

our machine is the ensemble of situated devices
computing happens by means of combining fields
straightforward mapping to functional languages
- compositionality by function composition (divide et impera)
- nothing new, software people know them already!
- networking and platform hidden under the hood

↓Nice place to work↓

Reusable aggregate library

Self-stabilizing blocks

Language primitives

Interpreter

Device abstraction (sensors, actuators)

Underlying platform (cloud? actors? LoRaWAN?)

The feel of it

red means overcrowding

The feel of it

import ...
// A field counting people around each point in space
def countNearby(range) {
  let human = rep(h <- env.has("human")) { h };
  sumHood PlusSelf(
    mux(human && nbrRange() < range) { 1 } else { 0 })
}

actual code from Modelling and simulation of Opportunistic IoT Services with Aggregate Computing

The feel of it

import ...
// A field estimating people density in an area
def densityEst(p, range, w) {
  countNearby(range) / (p * pi * range ^ 2 * w)
}

(actual code from Modelling and simulation of Opportunistic IoT Services with Aggregate Computing)

The feel of it

import ...
// A field of boolean, true if the area is overcrowded
def dangerousDensity(p, range, dangerousDensity, groupSize, w) {
  let partition = S(range, nbrRange);
  let localDensity = densityEst(p, range, w);
  let avg = summarize(partition, sum, localDensity, 0)
    / summarize(partition, sum, 1, 0);
  let count = summarize(partition, sum, 1 / p, 0);
  avg > dangerousDensity && count > groupSize
}

(actual code from Modelling and simulation of Opportunistic IoT Services with Aggregate Computing)

The feel of it

import ...
/* A field that partitions space in safe, overcrowded,
   and overcrowding areas, given a certain time window */
def crowdTracking(p, range, w, maxDense,
      dangerThr, groupSize, time) {
  if (isRecentEvent(densityEst(p, range, w) > maxDense, time)) {
    if (dangerousDensity(p, range, dangerThr, groupSize, w)) {
      overcrowded()
    } else { atRisk() }
  } else { none() }
}
// Application code: crowd density tracking in a 60s window
crowdTracking(0.005, 30, 0.25, 1.08, 2.17, 300, 60);

(actual code from Modelling and simulation of Opportunistic IoT Services with Aggregate Computing)

Engineering toolchain

A higher order calculus
Two practical languages
- Protelis
  - Java-hosted stand-alone language
- Scafi
  - Scala internal DSL
Multiple simulators (it’s easy to attach them)
- Alchemist
  - Supports both Protelis and Scafi
- NASA WorldWind

Integration

Requirements:
- Devices exchange data with their “neighbors”
  - Whatever a “neighborhood” is
No assumption on the deployment
No assumption on communication means

Integration

Computation may happen:

on each device
on the edge
on the cloud

the aggregate software does not change at all

Integration

No magic, deployment-specific complexity is simply incapsulated under the hood

divide et impera

Write the application thinking of what it should do
Write the platform thinking of where it should run
- And reuse it for future applications

Silver bullet?

nope

Very handy for expressing the "coordination"
Other paradigms are better at the good ol' "local" programming

e.g. I wouldn't develop a GUI in aggregate...
(although technically doable)

The final software is usually a mixture of paradigms

abstraction is not a free lunch

abstraction raised by hiding networking and protocols

harder to optimize for bandwidth saving

application-specific optimization at the platform level breaks the paradigm

security is a serious concern

Some work on application-level countermeasures
Platform-level attacks disrupt the paradigm

A work on this is being presented right now

Conclusion

engineering applied to the problem, regardless of the underlying platform
- first what
- then where

Conclusion

language-based, top-down, global-to-local
- easier design
- high composability
- better guarantees

Conclusion

rich set of tools
lots of work to do on optimization and security

enabling technology for projects dealing with the Internet of Things and Smart Cities

Appendix: play with it!

A tutorial for learning Protelis is available

Scafi is better learned by reading a paper (for now)
