A Self-Stabilizing Min-Max Consensus via Path-loop Detection

Angela Cortecchia, Danilo Pianini, Mirko Viroli

Context: gossip algorithms

Gossip algorithms are a popular class of decentralized protocols for information dissemination and aggregation in distributed systems.

Network nodes converge to a common value by repeatedly exchanging and merging their local state with neighbors.

Gossip algorithms merge values using functions that are:

• idempotent: $f(x, f(x, y)) = f(x, y)$, and
• commutative: $f(x, y) = f(y, x)$.

Problem at hand

• Gossip is scalable and decentralized, but monotonic
  • values can only adjust in one direction
  • Once a stale or corrupted “best” value appears, it can persist forever
  • Gossip protocols are inherently asymmetric
• In other words, classic gossip is not self-stabilizing (cf. Dijkstra 1974¹)

Self-stabilization is the ability of a system to recover from arbitrary transient faults, eventually converging to a correct state without external intervention.

1. Self-stabilizing systems in spite of distributed control https://dl.acm.org/doi/10.1145/361179.361202

Gossip algorithms: the curse of monotonicity

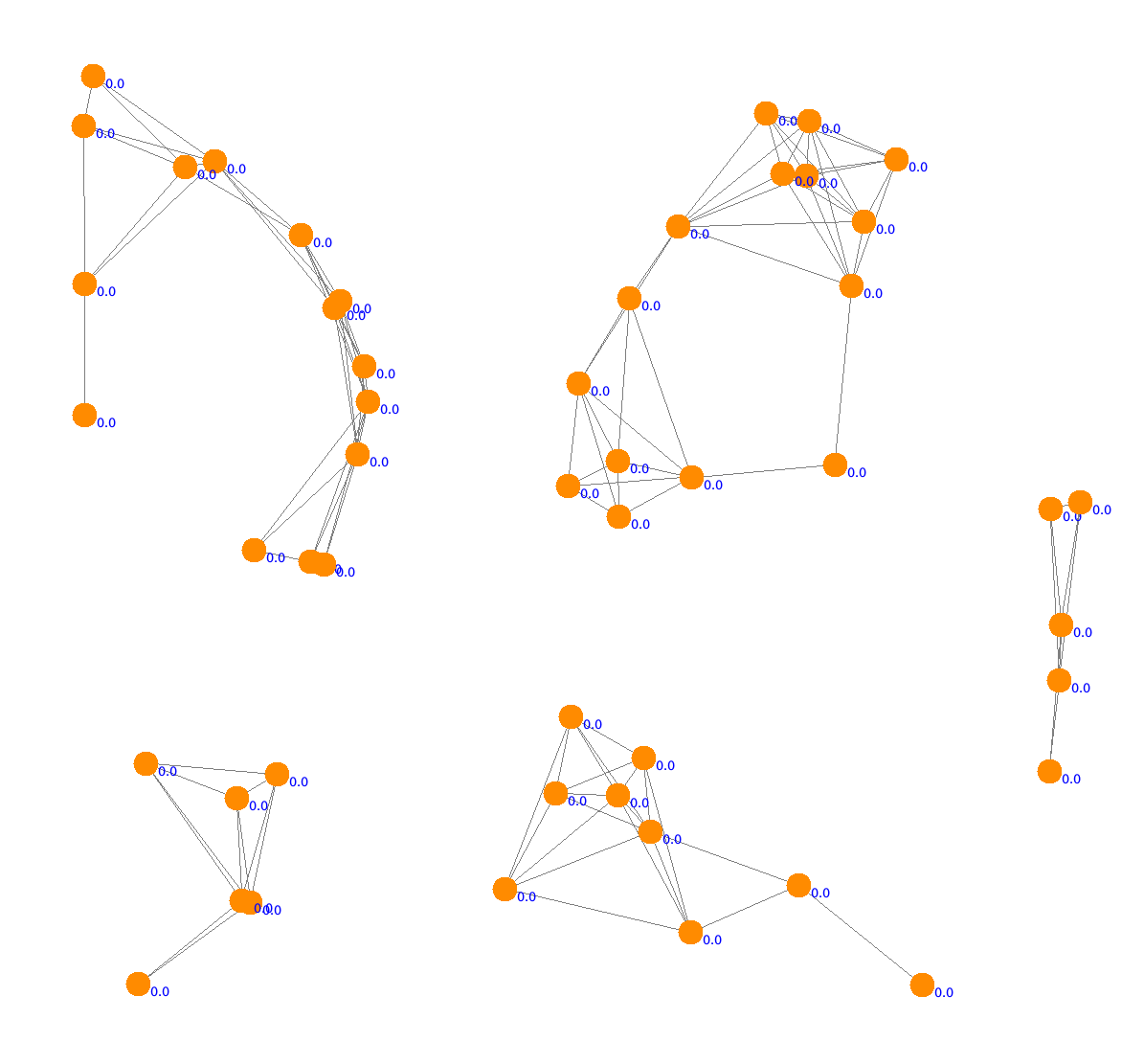

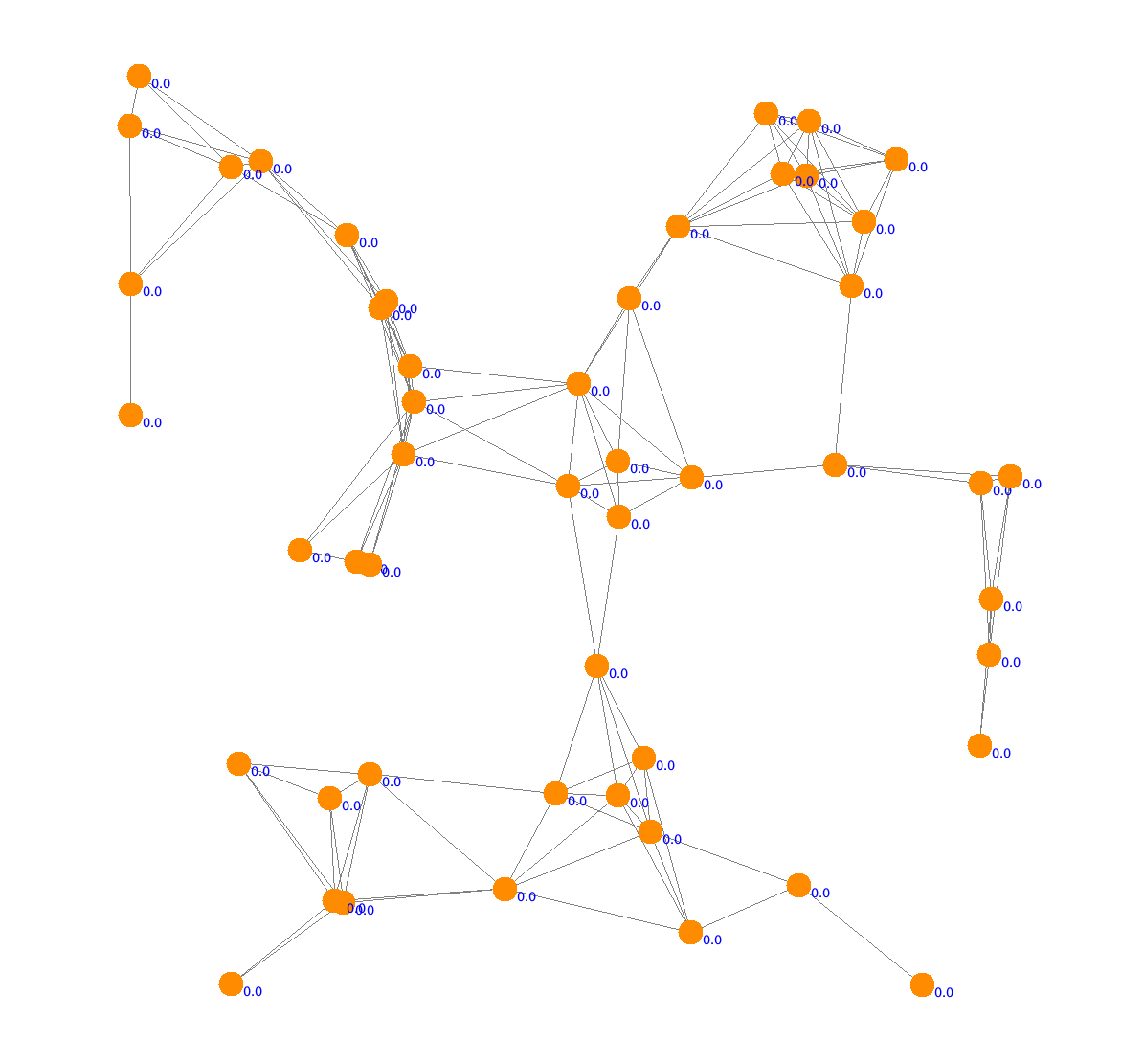

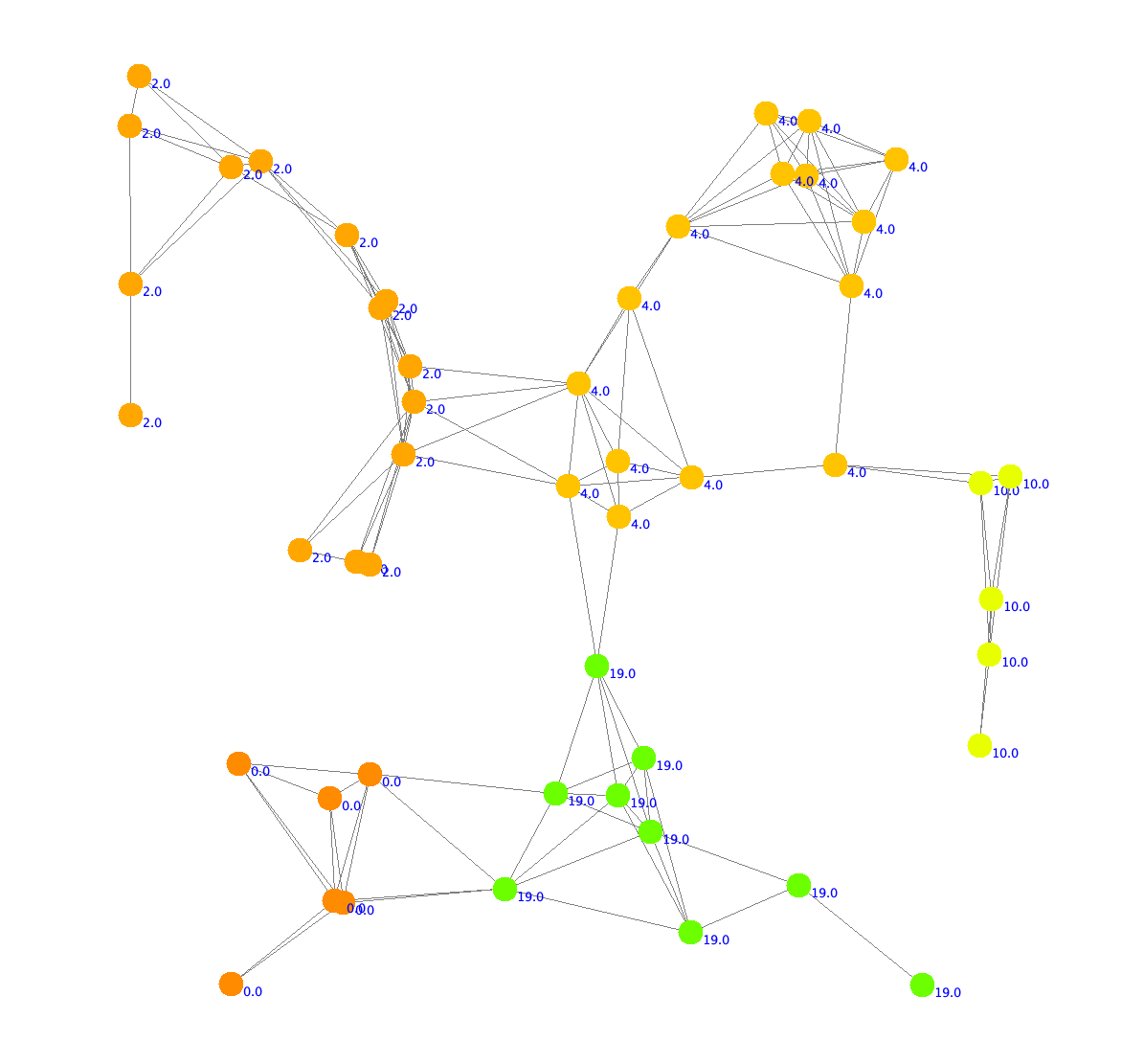

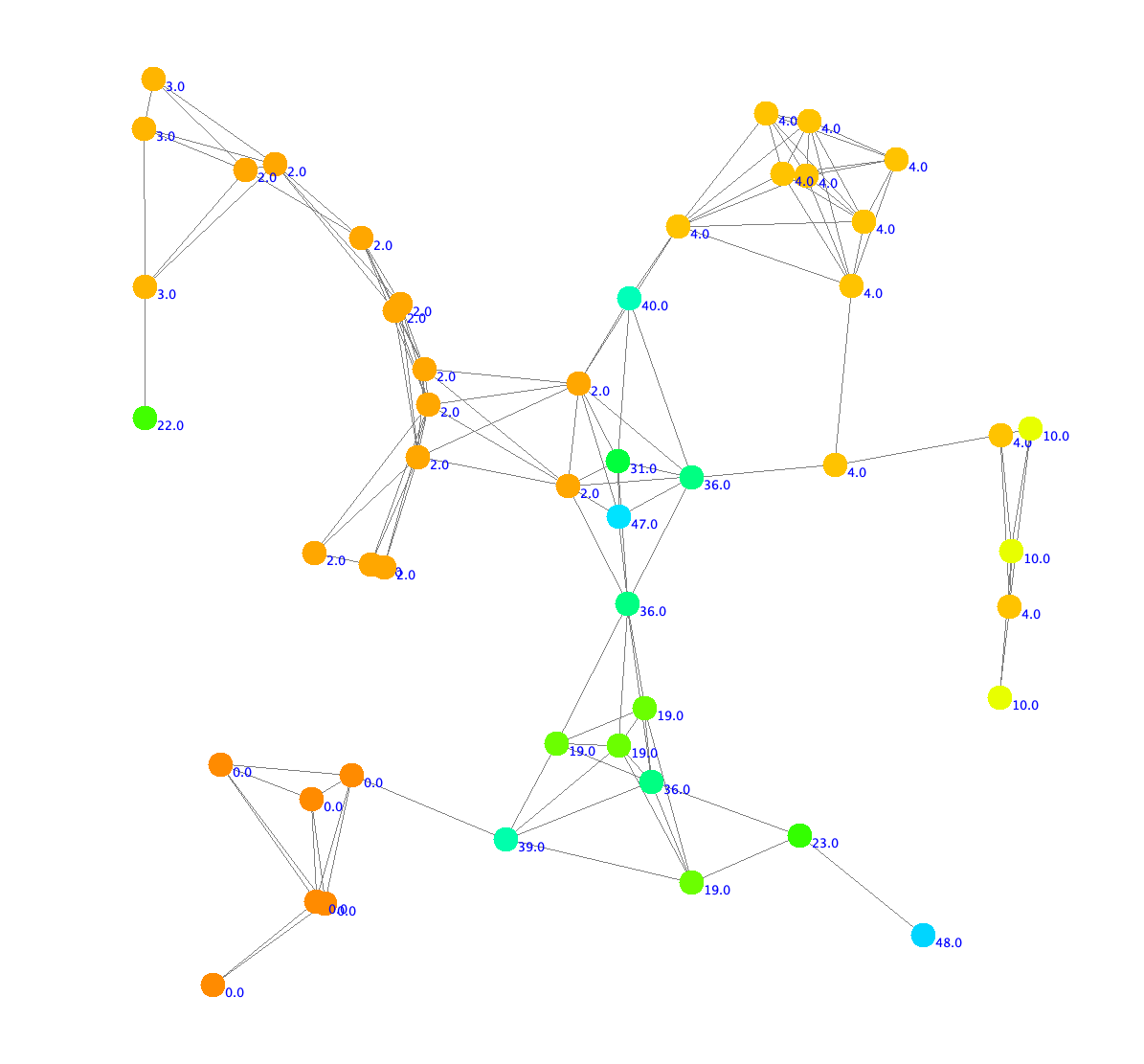

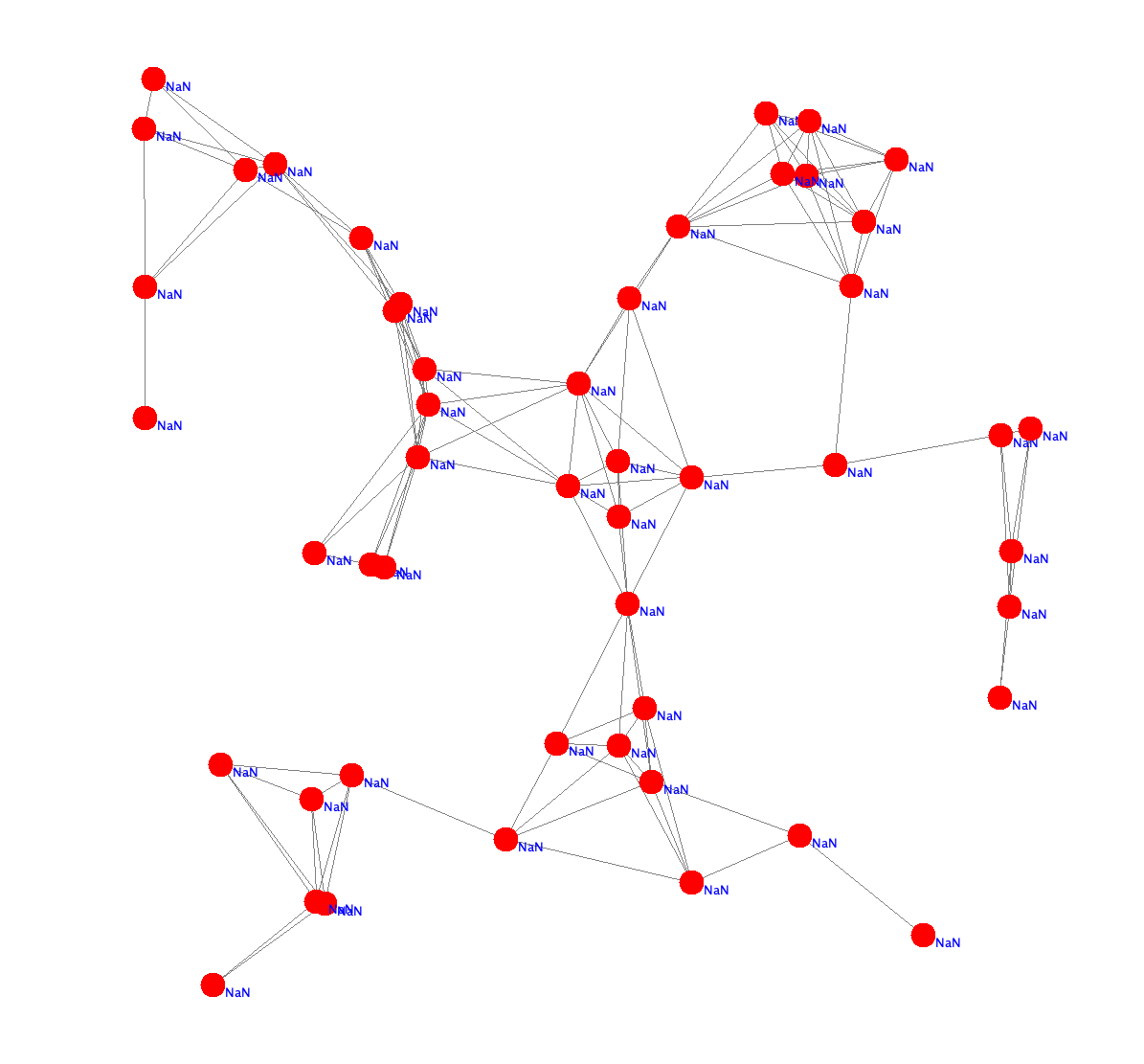

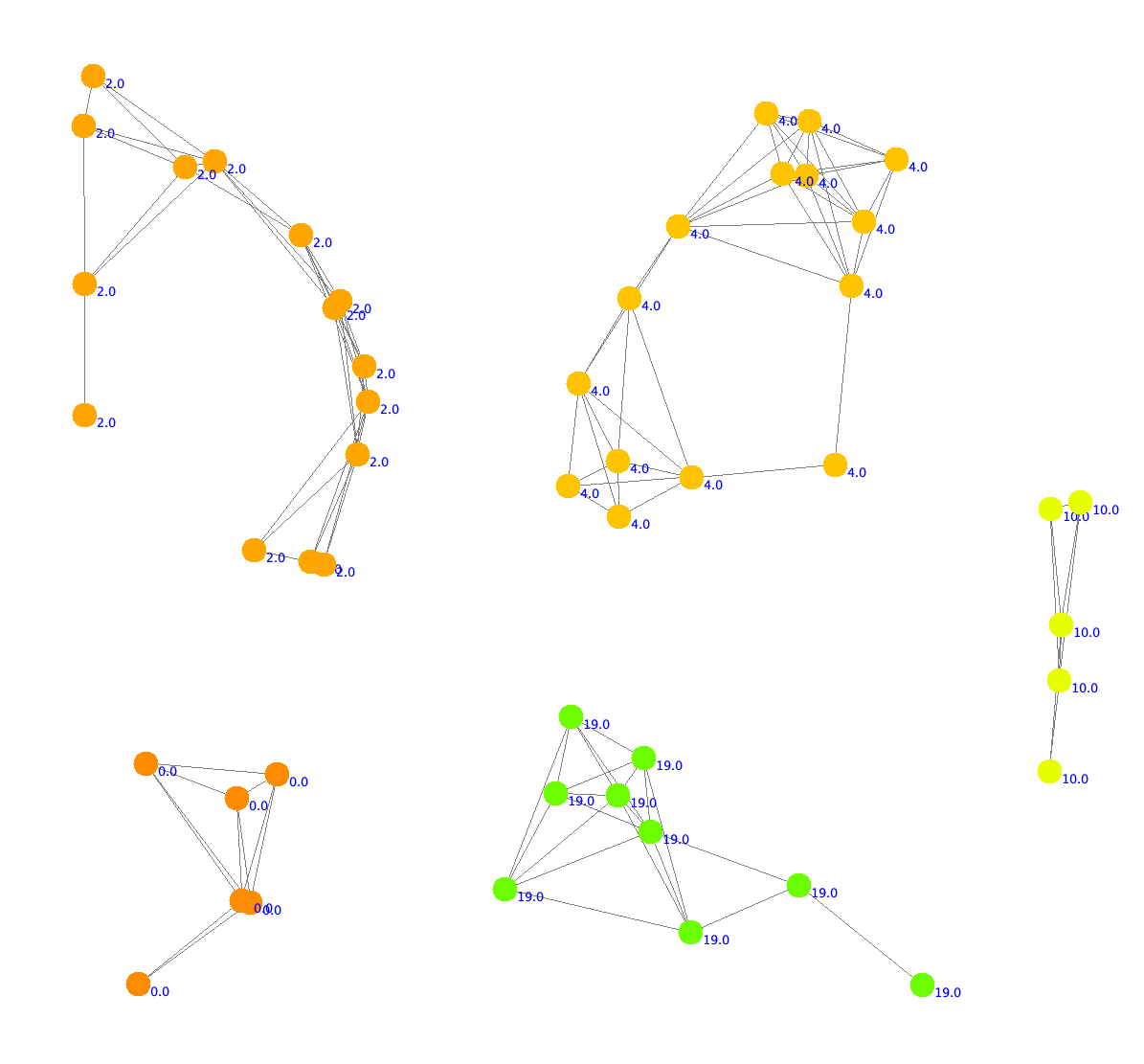

Mini-simulation: find the minimum value in the (local) network.

We’ll expand the communication radius, then reduce it

Desiderata: the minimum value should be found, when the network changes, the system should recover and find the new minimum.

Common workarounds

Restart-gossip

A strategy to recover from stale values is to periodically reset the system

• Requires global synchronization or logical timestamps
• Stability vs adaptivity trade-off (oscillatory behavior)
• Non-self-stabilizing by design

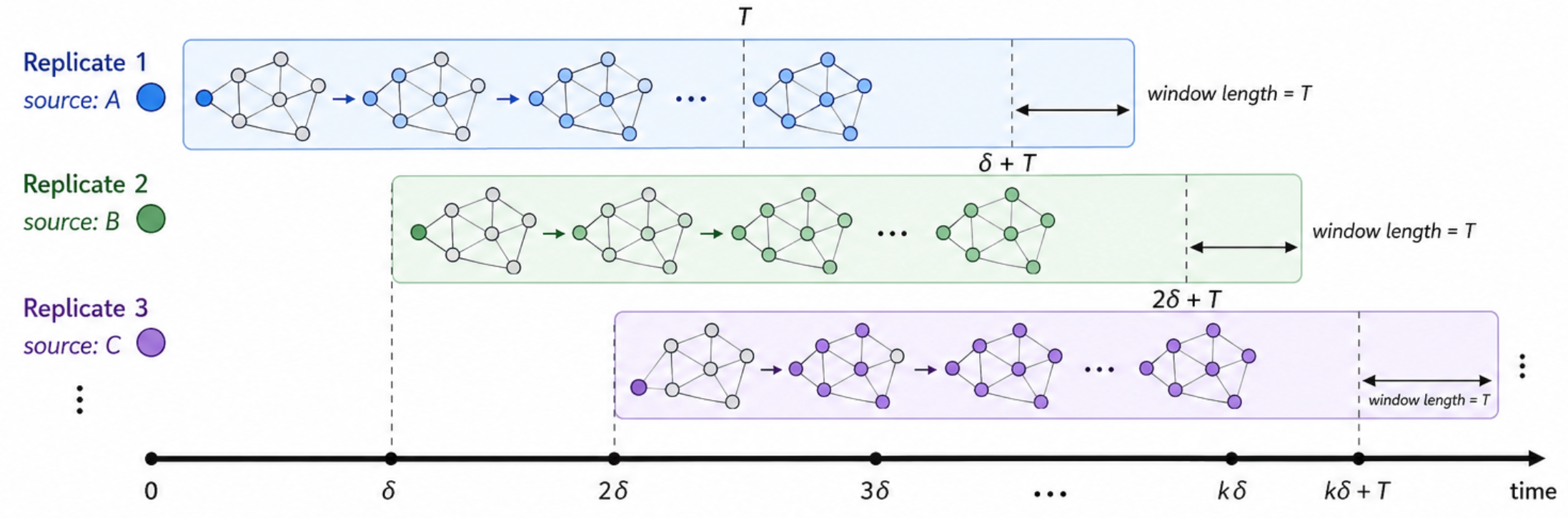

Time-replication

Maintain multiple parallel gossip instances, use the oldest replica as current, discard replicas after a timeout.

• Requires a “pace-making” mechanism
• Trades off promptness and communication overhead to achieve self-stabilization
• Requires fine-tuning of hyperparameters (number of replicas, timeout duration)

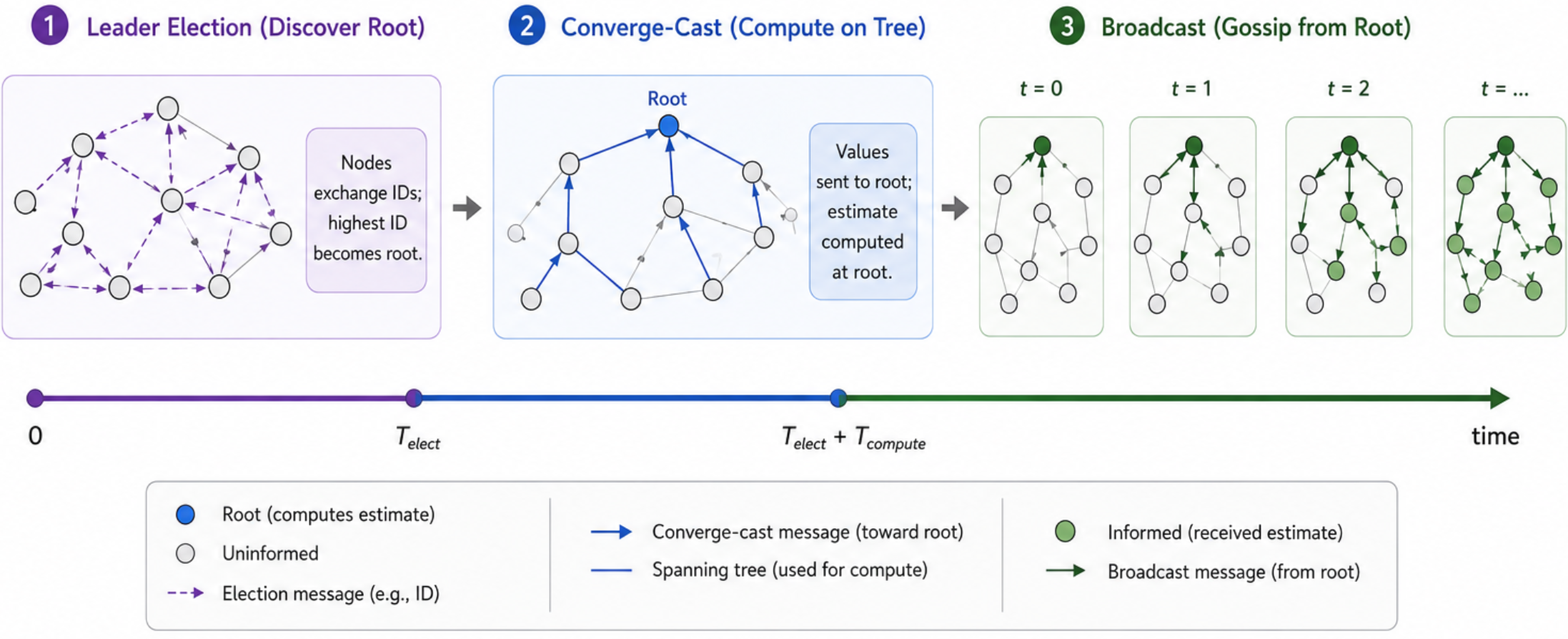

Converge-cast + broadcast

Elect a leader, build a spanning tree, aggregate values up to the root, broadcast result down.

• Leader election and tree maintenance are costly and fragile in dynamic networks

Gossip vs. min-max consensus (aka selector-based consensus)

Min-max consensus is a special case of gossip where the correct value depends on a single input, e.g., minimum or maximum selection.

In addition to commutativity and idempotence, the function must also be selective: $f(x, y) \in \{x, y\}$.

Intuition

• In min-max consensus, the “best” value is determined by a single node’s input
• We can track the “path” of support for a value
  • This is similar to the spanning tree in converge-cast, but without a fixed leader or global structure
• If the local device appears in the path of a candidate value, it can reject it as stale (loop detection)

Algorithm:

1. messages are in the form (value, list of device ids). Start with (local value, [local device id])
2. observe the values shared by neighbors, discard all those whose list contains your device id (loop detection)
3. select the best value among the remaining candidates and your local one
   • tie-breaking by shortest path and deterministic ID-based rule
4. share the selected value with your device id appended to the list

Under the hood

Why stale values disappear

• Unsupported values are not regenerated by any local source
• Propagation in finite components eventually causes loops or loss against valid candidates
• Loop detection + deterministic selection prunes obsolete information

Implementation in aggregate computing

• Fully decentralized
• No global clocks
• No periodic global reset
• No leader election or collection tree
• Asynchronous and local interactions only

Self-stabilization proof

We prove self-stabilization after the environment stabilizes.

• Each connected component contains a finite set of devices $\mathcal D$
• Device identifiers are totally ordered
• Each device keeps only the last value received from each neighbor
• Local inputs and neighborhood relations eventually stop changing

Proof idea

• We show that the aggregate computing implementation of algorithm is an instance of the minimizing-share self-stabilizing pattern
• Total order on device identifiers induces a total order on gossip values
• The addition of the current device identifier to the path ensures monotonicity and progressiveness

Consequences

1. Loop-freedom: a candidate cannot be accepted after re-entering a device already in its path
   • holds because a device never selects a candidate whose path already contains its own identifier
2. Stale information pruning: unsupported candidates are eventually removed
   • holds because, once stabilized, unsupported candidates are no longer regenerated locally, while progressive path extension cannot continue indefinitely in a finite component without eventually being rejected by the sanitizer.
3. Convergence: remaining candidates converge to the best value in each connected component
   • holds because the minimizing-share result guarantees stabilization to the ≤-minimum candidate

Evaluation setup

• Simulated in Alchemist¹, experiments are open source and available²
• Random 2D deployments in a square arena, asynchronous rounds (1 Hz), unit-disk communication with range $R$
• Dynamics: We let the system stabilize, then perturb it by changing the topology (inducing segmentation), then changing the local values, and finally removing the segmentation.
• Baselines: non-self-stabilizing gossip and time-replicated gossip
• Metrics:
  • RMSE from oracle expected value
  • Communication data rate

1. https://alchemistsimulator.github.io
2. https://bit.ly/3OnjCQA

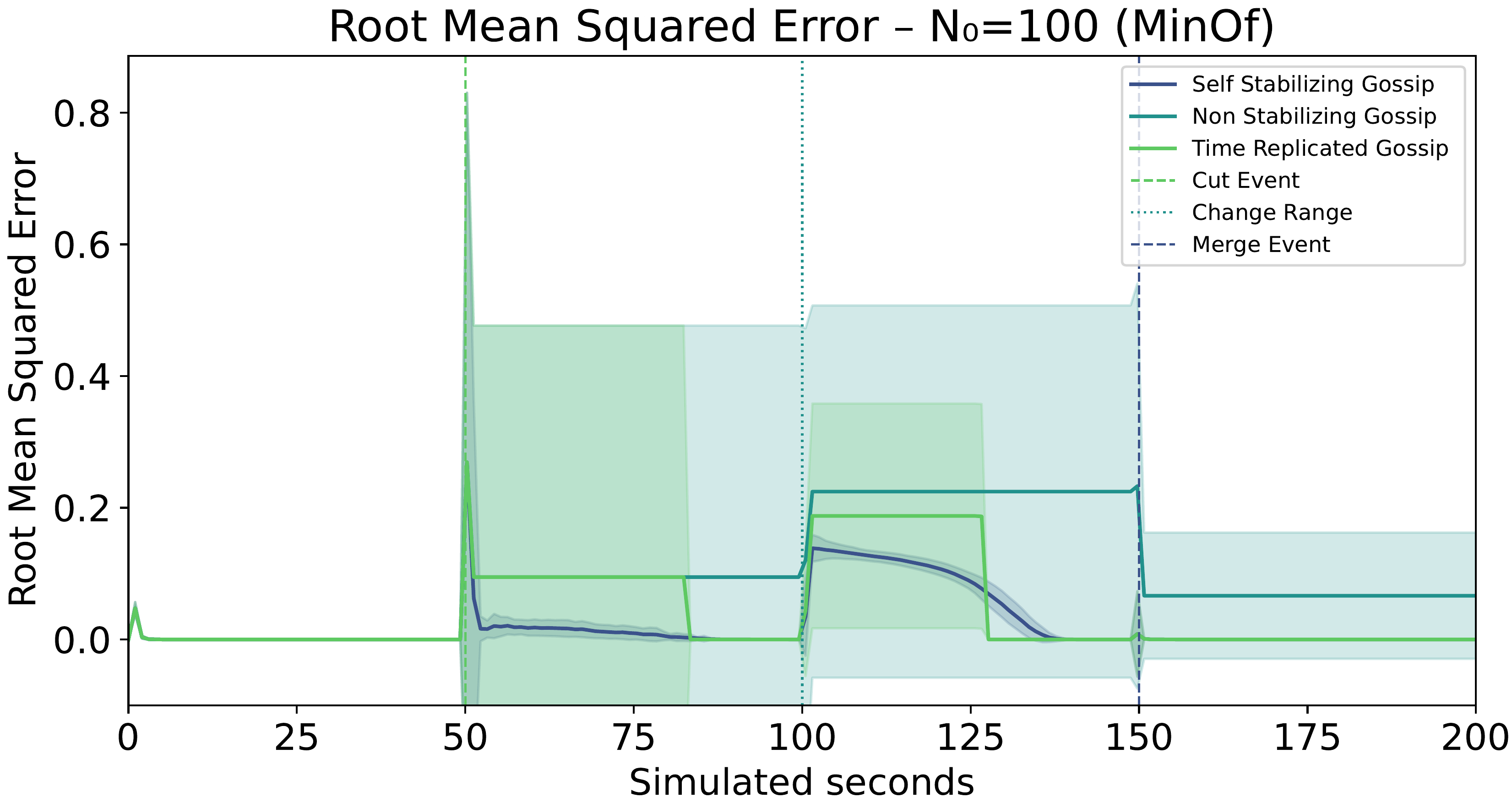

Performance

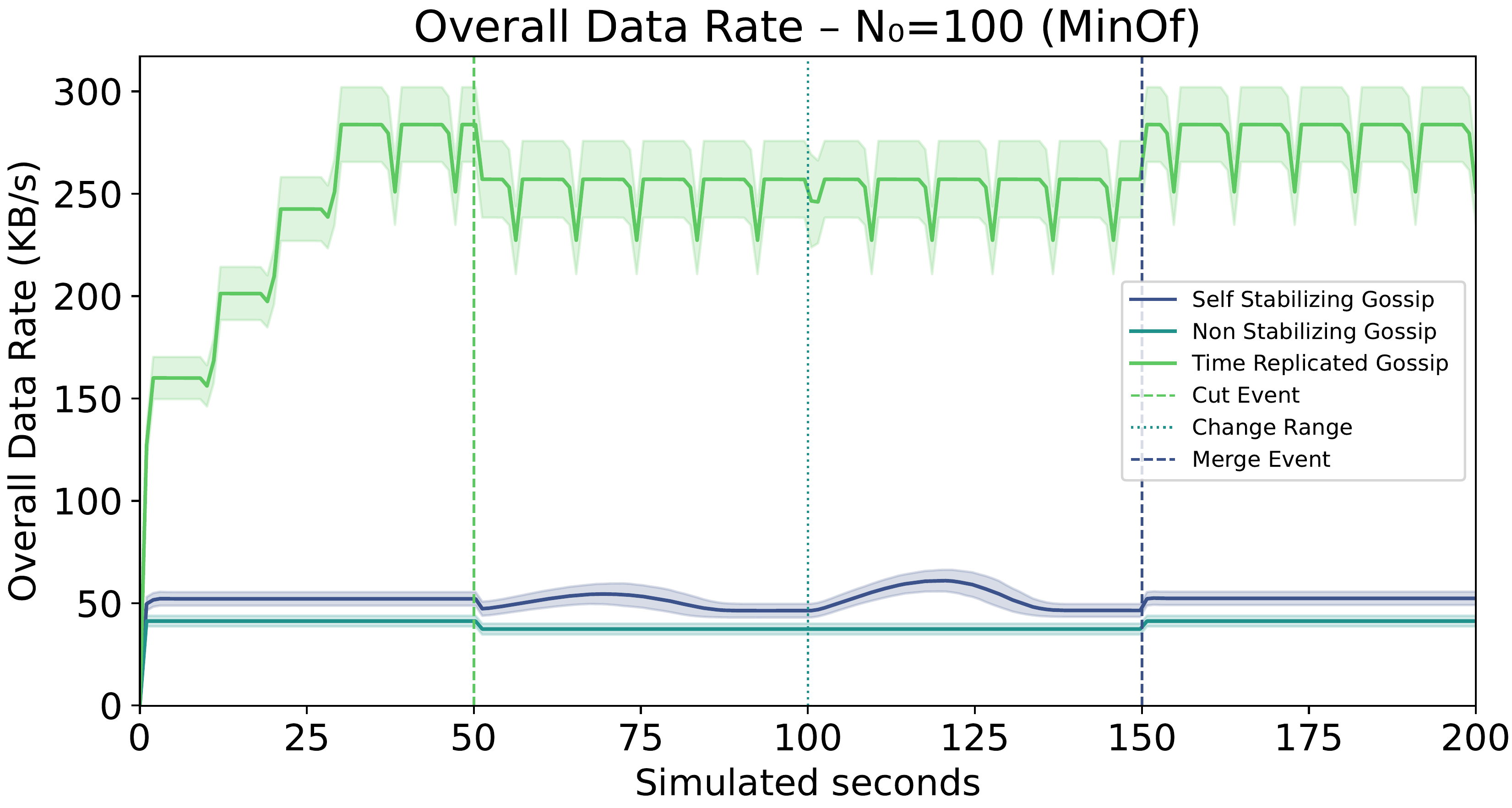

Network cost

Conclusion

• We presented a self-stabilizing min-max consensus algorithm based on path-loop detection
• The algorithm is fully decentralized, asynchronous, and does not require global synchronization or leader election
• We proved self-stabilization
• We compared with time-replicated gossip and showed comparable convergence speed with significantly lower communication overhead

Limitations

• Designed for selector-based consensus (min/max/custom comparator), the approach is not suitable for mean/union-style aggregates
• We suspect that high churn rates may degrade performance, but we have not yet tested this hypothesis

Future work

• Characterize performance in cases of persistent churn, message losses, and heterogeneous delays
• Investigate path-loop detection for other algorithms

Additional material

Memory cost

The path $P$ is the only additional state carried by the protocol.

• Worst case: $|P|$ grows linearly with the network diameter
• Internet-like router-level diameters are typically in the order of tens: 10–40 hops
• With 16-byte UUID identifiers: 160–640 bytes per path
• With 6-byte MAC-style identifiers: 60–240 bytes per path

The overhead remains manageable for most modern networked devices.

Union gossip
